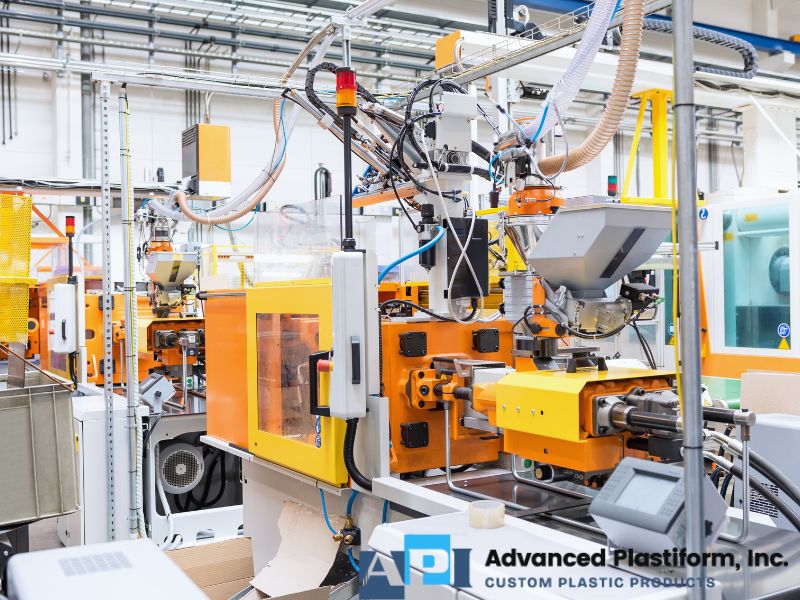

Causes of Warpage in Injection Molded Parts and How to Avoid
Uneven cooling, inconsistent wall thickness, and poor material selection are three of the most common reasons injection molded parts warp—and they can turn an otherwise good design into a pile of rejects fast. The good news is that balancing cooling channels, standardizing wall sections, and choosing lower-shrinkage resins gives you real control over distortion before parts ever leave the mold.
Join the experts at Advanced Plastiform Inc.—an injection molding company serving clients throughout the Southeast, as we walk through each of these drivers of warpage and outline practical, engineering-focused steps you can take to keep injection molded parts stable, accurate, and consistent.
Identifying Warpage In Injection Molding
Signs of warpage from the injection molding process means there are visible or measurable distortions in the plastic part, indicating uneven shrinkage or internal stress during cooling. Warpage rarely comes from a single mistake—most of the time, it’s the result of several small imbalances throughout the production process.
Signs of Injection Molding Warpage
The common signs of injection molding warpage issues are:
- Bending or Bowing: Flat surfaces curve inward or outward, indicating uneven shrinkage across the part.
- Twisted Geometry: One end of the part rotates or spirals relative to the other, often caused by directional cooling imbalances.
- Lifted Corners or Edges: Corners flare upward or outward instead of lying flat, showing that one section cooled or shrank faster than another.
- Uneven or Wavy Surfaces: Areas that should be smooth appear rippled or distorted due to inconsistent solidification.
- Poor Fit During Assembly: Parts no longer align, snap, or mate correctly with other components, revealing dimensional changes after molding.
Top Causes of Injection Molded Warping
Understanding where imbalances in the process start is the key to preventing warpage, especially in high-precision or mass production injection molding. Below are the main factors that most commonly lead to distortion in injection molded plastic components.
Warping Caused from Uneven Cooling
Uneven injection molding cooling is the leading cause of warpage because different regions of the part solidify and shrink at different times.
Common cooling-related drivers of distortion include:
- Hot Spots In Mold: Areas with insufficient cooling or thick steel stay warm longer and continue to contract after surrounding regions have already set.
- Poorly Placed or Unbalanced Cooling Channels: Cooling lines that are too far from the cavity or unevenly distributed create strong temperature gradients across the part as it cools.
- Inconsistent Wall Thickness: Thicker sections hold heat and cool more slowly, while thinner areas lock in quickly, causing differential shrinkage across the geometry of the part.
Together, these cooling imbalances generate internal stress that often appears as bowing, twisting, cupping, or lifted corners in molded parts.
Material-Related Contributors to Warpage
Material behavior plays a major role in how a part cools, shrinks, and responds to internal stress.
Key material factors to watch for include:
- Material Shrinkage Characteristics: Every resin has a specific shrinkage profile, and semi-crystalline plastics like polypropylene typically shrink more than amorphous materials, increasing the risk of distortion.
- Moisture Content In Resin: Excess moisture can create bubbles, splay, and weakened polymer chains that shrink unpredictably as the part cools.
- Inconsistent Filler Dispersion: Fillers such as glass fibers, talc, or mineral blends must be uniformly dispersed, or different regions will shrink at different rates and twist along fiber orientation.
When these material factors are not controlled, dimensional accuracy and part stability become much harder to achieve.
Processing Conditions That Trigger Warpage
Even a well-designed injection mold and properly chosen resin can be undermined by incorrect processing settings.
Common process-related drivers of warpage include:
- Incorrect Melt Temperature: Melt that is too hot can lead to excessive shrinkage, while melt that is too cool may freeze prematurely and trap internal stress.
- Improper Packing and Holding Pressure: Too little pressure allows underpacking and voids, while too much compresses certain regions, causing uneven shrinkage across the part.
- Fast or Premature Ejection: Parts ejected before they have cooled sufficiently will continue to move outside the mold, leading to warping and loss of dimensional control.
Dialing in these injection molding processing parameters is essential to keep internal stresses low and maintain consistent part geometry.
Mold Design Issues That Lead to Warpage
The design of the mold itself strongly influences material flow, cooling uniformity, and shrinkage behavior.
Key mold-related causes of warpage include:
- Flow Imbalance In Runner System: When one side of the runner fills faster than the other, pressure and packing differ across the cavity, resulting in bending or bowing.
- Gate Placement Problems: Gates positioned too far from critical features or at the wrong locations create long, uneven flow paths that cool at different rates and lock in stress.
- Insufficient Venting: Trapped air restricts melt flow, raises local temperatures, and can prevent complete filling, all of which add internal stress that shows up as warpage.
Addressing these mold design issues early in development greatly reduces the risk of distortion once parts reach production.
Solutions to Prevent Warpage in Injection Molding
Preventing warpage during the injection molding process begins with balancing heat, pressure, material behavior, and mold design so each part cools and shrinks as uniformly as possible. When these elements work together, internal stress is reduced and dimensional accuracy becomes far more consistent.
The following strategies help stabilize part geometry and improve overall molding performance.
Optimize Mold Cooling Uniformity
A well-balanced injection molding cooling system ensures each region of the part solidifies at the same rate. This begins with properly positioned cooling channels and consistent water flow that eliminates hot spots. When cooling is uniform, shrinkage becomes predictable and the likelihood of bowing or twisting drops significantly.
Improve Part Design for Dimensional Stability
Design choices such as consistent wall thickness, smooth transitions, and supportive rib structures reduce the stress that leads to warpage. Maintaining uniform geometry helps the part cool evenly from the inside out. By addressing potential problem areas during the design phase, many warpage issues can be eliminated before tooling even begins.
Select Materials With Lower Shrinkage or Better Stability
Choosing a resin that aligns with the part’s geometry can dramatically improve dimensional accuracy. Lower-shrinkage materials or fiber-reinforced blends help reduce contraction and stabilize complex shapes. Properly drying and conditioning materials also ensures consistent cooling behavior throughout the part.
Fine-Tune Processing Parameters
Adjusting melt temperature, packing pressure, and cooling time ensures the material fills and solidifies under stable conditions. Even small changes to these settings can correct differential shrinkage and internal stress. When processing is optimized, warpage of the plastic components often decreases without needing major design or tooling modifications.
Optimize Gate and Runner Design
Gate placement and runner balance directly influence flow patterns, pressure distribution, and cooling behavior in the mold. A well-positioned gate ensures the part fills evenly and minimizes stress concentrations that lead to distortion. Improving these features often results in more consistent part geometry and fewer post-molding issues.
Does Injection Molding Warping Influence Production Costs?
Warpage has a direct and often significant impact on injection molding costs. When parts twist, bow, or lose dimensional accuracy, scrap rates increase, cycle times slow down, and operators must spend additional time troubleshooting or making manual adjustments.
Warpage can also require expensive tooling modifications, secondary machining, or design changes to correct the issue mid-production. Even minor distortion can cause assembly failures that ripple through the entire manufacturing process, increasing labor costs and delaying shipments.
By controlling warpage early—through better cooling, design, materials, and processing—you not only improve part quality but also protect your bottom line by reducing injection molding costs.
