3D Modeling and CAD Design in Plastic Manufacturing

Advanced Plastiform, Inc. provides 3D modeling and CAD design support for manufacturers across the Southeast that need custom plastic components engineered for production.

Request a Quote

How Does Advanced Plastiform, Inc. Use 3D Modeling and CAD for Custom Plastic Manufacturing?

Advanced Plastiform, Inc. uses 3D modeling and CAD to evaluate how custom plastic parts will be tooled, formed or molded, trimmed, assembled, and inspected.

Backed by an ISO 9001:2015-registered quality system and PPAP/FAIR capabilities, our team helps manufacturers move production-ready components from design review into repeat production with stronger quality control and fewer handoff issues.

Engineering Support That Connects Design to Production

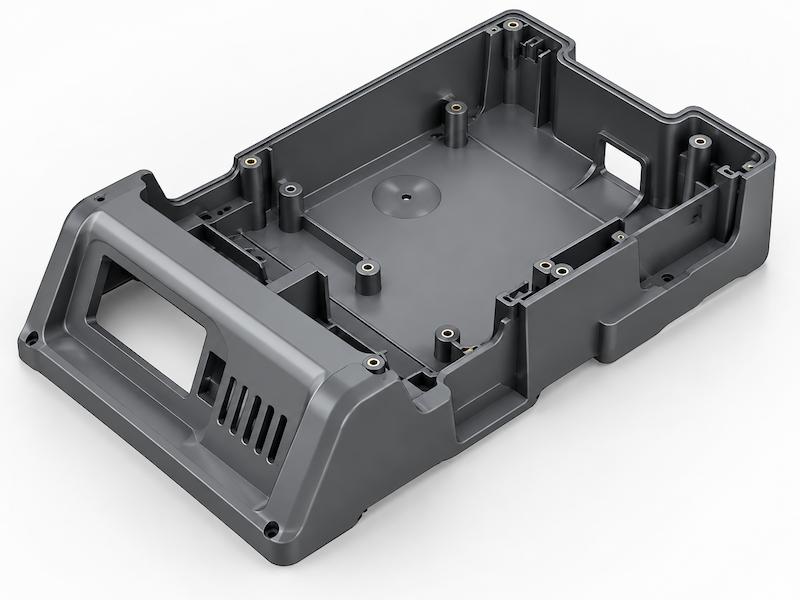

3d modeling and cad drawings support for automotive, medical, construction, telecommunications

A CAD model is not just a drawing of the finished part. It gives your engineering team and ours a common reference for evaluating how the component will fit into a larger product and how it can be manufactured efficiently.

Whether you are sourcing an automotive interior panel, agricultural equipment roof, equipment housing, protective cover, tray, or another custom component, our engineers review the design with the next stages of production in mind.

That can include thermoforming, injection molding, prototyping, tooling, trimming, finishing, assembly, and quality validation.

From more than 160,000 square feet of manufacturing space in North Carolina, Advanced Plastiform, Inc. supports manufacturers that need more than a digital model. We help move the component into production.

Why Manufacturers Use Advanced Plastiform, Inc. for 3D Modeling and CAD Support

The value of involving a custom plastic supplier during the early stages of CAD design is the ability to look at the design through a production lens. Our team at Advanced Plastiform, Inc. reviews the details that affect forming, molding, trimming, assembly, or finished part performance before those issues become more difficult or expensive to address.

Identify Production Concerns Earlier

A 3D model gives both engineering teams an opportunity to review fit, mounting points, mating surfaces, clearances, draft, wall transitions, trim areas, and other features before tooling is finalized. Addressing those details early in the process helps reduce unnecessary redesign later in the project.

Keep Engineering and Production Aligned

Once the part geometry is approved, that same CAD data carries forward into prototyping, tooling, CNC trimming, inspection, and repeat production. That helps reduce confusion between design and manufacturing and gives everyone involved a consistent reference for how the part should be made.

Protect Confidential Product Information

CAD files often contain details your company does not want shared outside the project team, especially when you are developing a new product, updating an existing design, or changing suppliers. Advanced Plastiform, Inc. can review your nondisclosure agreement before you send proprietary drawings, models, or other confidential engineering information.

Support the Entire Production Process

CAD review is only the beginning. When you partner with Advanced Plastiform, Inc., we can continue supporting the part through prototyping, tooling, thermoforming or injection molding, trimming, finishing, assembly, quality validation, and repeat production.

Keeping those stages connected helps:

Reduce handoff issues
Maintain design intent
Give your team one manufacturing partner from engineering review through production

From CAD Review to Thermoforming or Injection Molding

Once the component has been reviewed, the approved design becomes the foundation for the production steps that follow.

Product Prototyping

When physical evaluation is appropriate, product prototyping can help your team evaluate form, fit, and function before production tooling is finalized.

A prototype can also provide a useful opportunity to identify practical issues that may not be as obvious on screen.

Tooling Design

Once the design reaches the appropriate approval stage, CAD data supports tooling design for the selected manufacturing method.

Tooling is developed with repeat production in mind, including part geometry, expected volumes, material, and processing requirements.

Thermoforming and Injection Molding

Advanced Plastiform, Inc. provides both heavy-gauge thermoforming and injection molding, allowing our team to evaluate the manufacturing process based on the part rather than forcing every component into the same production method.

Our thermoforming capabilities include vacuum forming, pressure forming, and twin-sheet forming.

For heavy-gauge thermoformed components, we can work with sheets up to 8 feet by 9 feet and thicknesses up to .450 inches.

Trimming, Finishing, and Assembly

CAD data helps define downstream work such as CNC robotic trimming, including where a part needs to be cut, drilled, or finished to reach its final dimensions.

Depending on the project, our assembly and finishing services help reduce the amount of secondary work required after parts leave our facility.

Quality Validation

Our ISO 9001:2015-registered quality management system supports documented processes and consistent production.

When required, Advanced Plastiform, Inc. can also provide PPAP and First Article Inspection Report capabilities to support dimensional and production validation.

3D Modeling That Helps Improve Decisions Before Tooling

A 3D model allows your engineering team and ours to look closely at the component before the investment in production tooling is made.

We can review features such as:

Mating surfaces
Mounting locations
Clearances
Critical dimensions
Tolerances
Draft and draw conditions
Trim areas
Wall transitions
Material requirements
Assembly considerations

The goal is to catch anything that could create problems in production while there is still time to address it, without changing the part more than necessary.

Custom Plastic Components Across a Wide Range of Industries

Our CAD, engineering, thermoforming, injection molding, tooling, and value-added capabilities support manufacturers across a wide range of industries.

We regularly manufacture custom plastic components for:

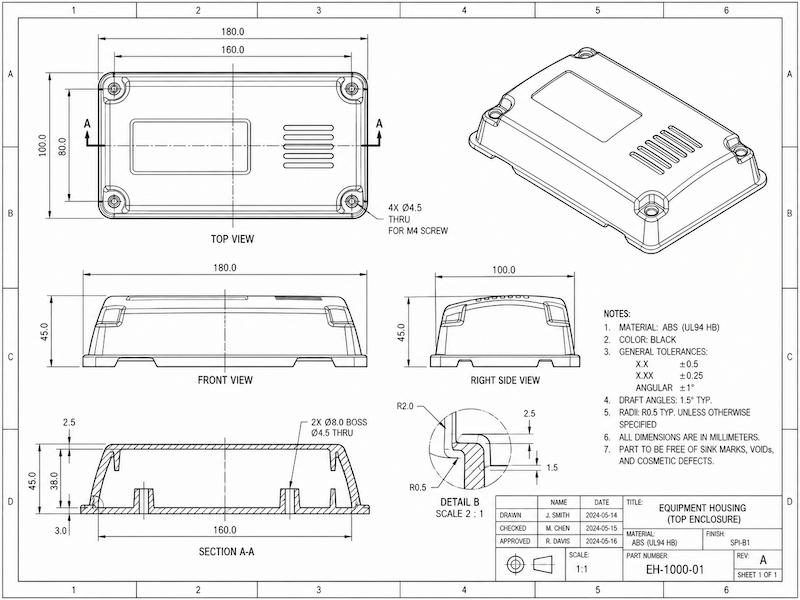

3d modeling and cad drawing support for manufacturing custom plastic parts

Most of the parts we manufacture are designed to fit into a larger finished product or piece of equipment. That can include automotive dashboards and door panels, agricultural equipment roofs and enclosures, medical equipment covers, telecommunications housings, filtration components, material-handling trays, and other custom plastic parts built for specific production needs.

Benefits of Partnering with Advanced Plastiform, Inc.

Attention to Detail That Drives Results

Every project is handled with precision. We focus on dimensional accuracy, material performance, and the details that help your plastic parts perform as designed.

ISO 9001:2015 Registration for Consistent Quality

Our ISO 9001:2015-registered quality management system supports documented processes, ongoing improvement, and consistent quality throughout production.

Manufactured in the USA

We manufacture custom plastic components in the USA from our 160,000-square-foot North Carolina facility in the heart of the Southeast.

Collaborative, Customer-Focused Approach

Our engineers, project managers, and customer service professionals work closely with you throughout production. Open communication helps keep your goals, timeline, and requirements clearly aligned.

All Expertise Under One Roof

From design engineers to sales and ownership, our team is on-site and engaged in daily operations. This structure streamlines problem-solving and provides timely answers at every stage of your project.

Decades of Proven Experience

With more than 35 years of experience in thermoforming and injection molding, we deliver practical solutions, reliable results, and responsive customer support across industries.

Flexible Manufacturing Capabilities

Our expertise in both thermoforming and injection molding allows us to recommend the process that best fits your part design, material requirements, production volume, budget, and performance goals.

CAD and Custom Plastic Manufacturing FAQs

What CAD files should I send to a plastic manufacturer?

Send the most current 3D model and engineering drawings available for the part, along with relevant dimensions, tolerances, material requirements, mating surfaces, mounting points, and revision information. Expected production quantities and assembly requirements are also helpful.

The ASME Y14.5 standard provides widely used guidance for communicating dimensional and geometric requirements.

Can Advanced Plastiform review an existing CAD model for manufacturability?

Yes. Our team can review an existing CAD model in relation to the intended manufacturing process, material, part geometry, tolerances, tooling, production volume, and finishing requirements. The goal is to identify issues that may affect how the part is formed, trimmed, assembled, or produced before final tooling is completed.

Can Advanced Plastiform sign an NDA before I send CAD files?

You can submit your nondisclosure agreement for review before sharing proprietary CAD files or confidential product information. This is especially useful for unreleased products, redesigns, supplier changes, and other projects involving protected engineering data.

Can 3D models be used to create a physical prototype?

Yes. CAD models can be used to support product prototyping and, when appropriate, 3D printing. A physical prototype gives your engineering team an opportunity to evaluate the part's form, fit, and function and make changes before committing to production tooling.

Can you create a 3D model from an existing plastic part?

Yes. Advanced Plastiform, Inc. can support reverse engineering when an existing plastic part or prototype needs to be reproduced or updated. The existing component can be used as a reference for developing a digital model and evaluating the part for tooling and future production.

What happens after a CAD model is approved?

After your part’s CAD model reaches the approval stage, the project moves into prototyping, tooling design, thermoforming or injection molding, CNC trimming, assembly, quality validation, and repeat production.

The exact sequence of the manufacturing process depends on each unique custom part’s production needs. Advanced Plastiform, Inc. will review the process appropriate for your part after approval.

How does Advanced Plastiform, Inc. validate the quality of custom plastic parts?

Advanced Plastiform, Inc. operates under an ISO 9001:2015-registered quality management system. When required, we can also provide PPAP and First Article Inspection Report capabilities to document that the finished component meets specified dimensional and production requirements.

Move Your CAD Model Into Thermoforming or Injection Molding

If your company has a plastic component in development, Advanced Plastiform, Inc. can help move it from CAD review into the thermoforming or injection molding process.

We partner with companies throughout the Southeast, including North Carolina, South Carolina, Tennessee, Pennsylvania, Maryland, Georgia, and Virginia.
